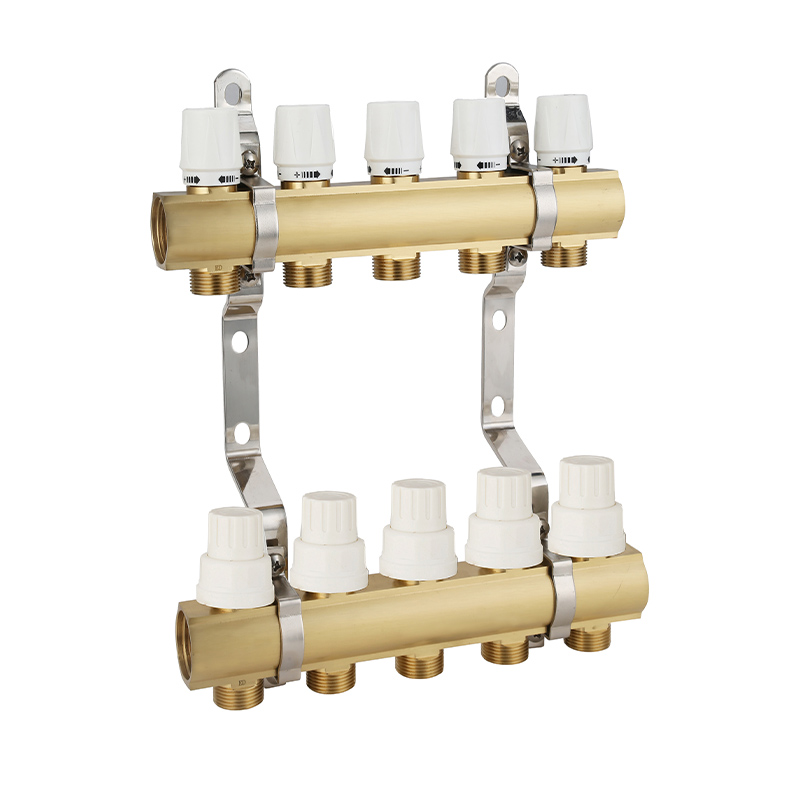

Distributor (profile) for underfloor heating
This series of manifold is designed for heating system, suitable for radiator heating and floor radiant heating system. The water supply main can be equipped with manual spool to balance the flow of each branch precisely, and the spring spool of the return main can be equipped with electric actuator to realize automatic temperature control, which is suitable for the use of a large number of branch circuits.
|
|
Product Overview This series of manifold is designed for heating system, suitable for radiator heating and floor radiant heating system. The water supply main can be equipped with manual spool valve to balance the flow of each branch precisely, and the spring spool valve of the return main can be equipped with electric actuator to realize automatic temperature control, which is suitable for the use of a larger number of branches. |
Technical Parameters
| Material: CW-614N | Inlet and return main outlet: DN16/DN20 |
| Brass alloy branch pipe spacing: 50mm | Applicable temperature：-5-100℃ |
| Nominal pressure: 10bar | Main pipe diameter: DN25 |
| Use of media: water | Temperature control stroke: 3MM |
| Component Description: Copper spring valve core, bracket, water outlet | |
Set specification
| Set size | |
| Model | Width |
| 3-way manifold | 15.6 |
| 4-way manifold | 20.6 |
| 5-way manifold | 25.6 |
| 6-way manifold | 30.6 |
| 7-way manifold | 35.6 |
| 8-way manifold | 40.6 |
